BarGraph and PieChart: to apply an image background to bar or pie

Questions
1

That is great, ZIM provides graphs. Is it possible to use an image as a background for the bar or pie to replace the color background or an icon?

2

There is a backgroundColor parameter as you mentioned, but for a background image, do not set it and put a new Pic() underneath. And Hello @kaviphim good to hear from you.

3

Thank you Dr. Abstract. And Hello! I am still around, behind the scene, always. I have been sick (2y) and it's been a slow recovery. But, i am back.

1 Like
4

Hello, Dr. Abstract, when you mention backgroundColor, you mean the backgroundColor of the PieChart. I want to apply the image at the wedge level. Each wedge will have its own image background.

I forgot to mention i looked at an the pieChart has a main circle and there is a shape attached to each wedge. I was able to use the circle of the pieChart. as a mask to the image. But i was able to idenitfy shape of a specific wedge, but was not able to use it to mask the image.

By the way, the shape i grabbed was the shape of the icon attached to the wedge.

I think i found the shape that represents the wedge. By using the shape of the wedge as a mask to the image, it works. But the position of the wedge has changed. Probably, it is because the imae and the shape are in different container.

5

The raw shapes may still have offsets when masking. When we made the ZIM shapes like circle, triangle, etc. we had to accommodate for the shift in createjs masking - pain in the neck. So if the mask is sort of working but showing in the top left corner... that might be it - I am just sitting down to a movie... will see if I can mask something in the pie chart a little later on.

6

I found the fix for the mask showing at the top left corner as you mentionned by adding the image in the backing of the graph.
All i need now, to continue the test is to know how to identify each shape related to the wedges. Can you give me a guideline on how to properly get those shapes?

7

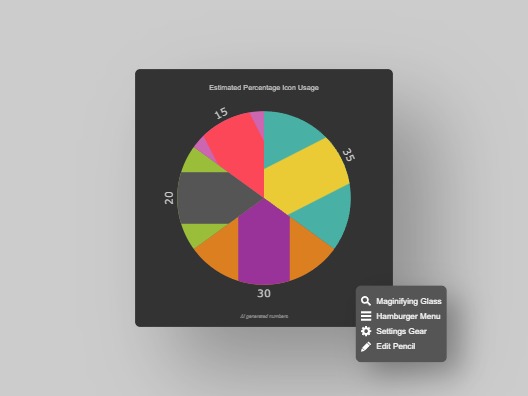

The wedges are not actually different shapes - but rather one shape. So we make new shapes and use them as a mask... fun challenge.

8

Thank you. I will use your example as a gudeline.

1 Like
