Vertical line

Questions
1

Shouldn't this draw a vertical line?

new Line({ lineOrientation : VERTICAL, thickness: 15 }).center()

2

That is the direction of the two outside lines if drawing with lineType corner or curve. To make a vertical line, make a new Line and rotate it - or make a new Line between points that are vertical.

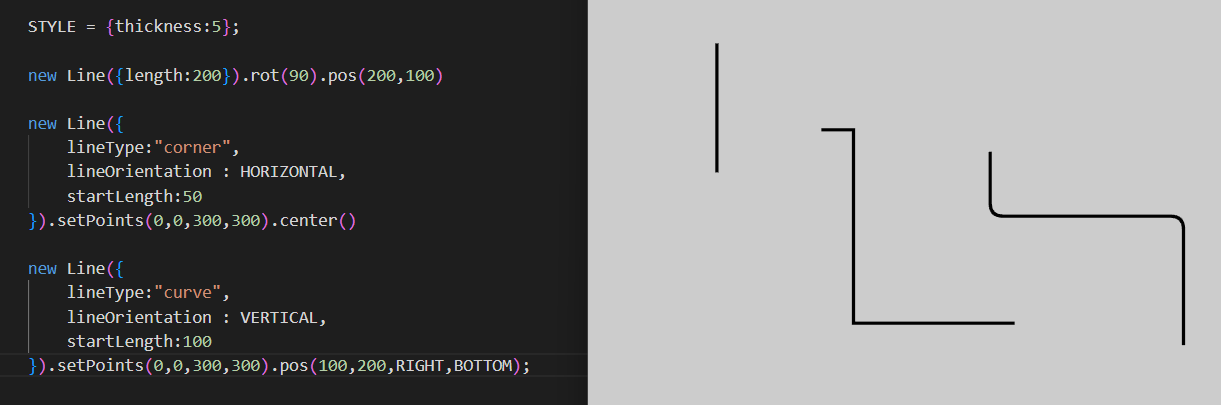

image1221×405 12.8 KB

STYLE = {thickness:5};

new Line({length:200}).rot(90).pos(200,100)

new Line({
	lineType:"corner",
	lineOrientation : HORIZONTAL,
	startLength:50
}).setPoints(0,0,300,300).center()

new Line({
	lineType:"curve",
	lineOrientation : VERTICAL,
	startLength:100
}).setPoints(0,0,300,300).pos(100,200,RIGHT,BOTTOM);
3

Thanks. I had tried the rot() and it worked but was messing up my calculations. I went back and readjusted those and we are back in business.

Thanks,

1 Like
